Understanding Cantilever Beams: In the world of architecture and engineering, few elements are as intriguing and vital as cantilever beams. These remarkable structures, often overshadowed by more visible design features, play a pivotal role in shaping modern buildings and bridges. In this comprehensive article, we will embark on a journey to understand the fundamentals of cantilever beams, explore their significance in the construction industry, and shed light on their versatile applications.
Why This Article is Worth Reading
Cantilever beams are like the unsung heroes of the architectural world, providing hidden support and enabling breathtaking designs. This article is worth reading because it peels back the layers of mystery surrounding cantilever beams. You’ll discover how these essential components influence building stability, architectural flexibility, and the realization of audacious design concepts. Whether you’re an aspiring architect, a curious engineer, or someone fascinated by the structural marvels that define our built environment, this comprehensive guide will illuminate the captivating world of cantilever beams.
What Is a Cantilever Beam?
In the world of construction and architecture, certain structural elements stand out as both intriguing and indispensable. The cantilever beam is one such marvel, quietly supporting some of the most iconic architectural features while defying our traditional understanding of equilibrium. In this exploration of “What Is a Cantilever Beam?”, we embark on a journey to uncover the secrets behind these remarkable structures.
At first glance, a cantilever beam may appear deceptively simple—a beam anchored at one end, with the other end projecting freely into space. Yet, beneath this seemingly straightforward design lies a world of engineering ingenuity and scientific principles that keep these structures stable and aesthetically captivating.
This journey begins with a definition of cantilever beams and their essential role in construction. We delve into the physics that underpin their stability, demystifying terms like bending moments and shear forces. Along the way, we’ll establish the fundamental concepts that govern cantilever beams, including the distinctions between fixed and free ends and the mechanics of load distribution.
So, if you’ve ever gazed in wonder at cantilevered balconies, awe-inspiring bridges, or buildings that seem to defy gravity, this article is your gateway to understanding the engineering brilliance behind them. Join us as we unravel the mysteries of cantilever beams and uncover the secrets that make them indispensable in the world of architecture and construction.
Defining Cantilever Beams and Their Role
Cantilever beams are a fundamental element in structural engineering and architecture. They are known for their distinctive design, where one end is securely anchored or supported, while the other end extends freely, projecting horizontally. This unique structural concept opens the door to a world of architectural innovation and engineering marvels.
Role in Construction: Cantilever beams play a pivotal role in the construction industry by providing essential support for various architectural elements. They serve as the backbone for overhangs, balconies, awnings, and other features that require horizontal projection without visible means of support. This unobtrusive support system allows architects to create visually striking and functional designs that defy conventional principles of equilibrium.
The Physics Behind Cantilever Beams
To understand the mechanics of cantilever beams, we need to delve into the underlying physics that govern their behavior. At first glance, cantilevers may appear precarious, as they seem to defy the laws of balance. However, upon closer examination, we discover the science that keeps them stable and reliable.
Balancing Act: Cantilever beams rely on the principles of static equilibrium. Despite their appearance, they maintain balance by distributing forces in a way that prevents structural failure. Bending moments and shear forces come into play, working in harmony to ensure the cantilever remains steady. This section will demystify these concepts and shed light on why cantilever beams are both structurally sound and aesthetically captivating.
Basic Concepts of a Cantilever Beam
Before diving deeper into the mechanics and applications of cantilever beams, it’s crucial to establish a solid understanding of their basic components and terminology. This foundation will serve as a valuable reference as we explore more complex aspects of cantilever beams in the subsequent sections.
Fixed End vs. Free End: Cantilever beams feature two key points of interest: the fixed end and the free end. The fixed end is where the beam is anchored or supported, providing stability, while the free end extends outward. Understanding the role of these ends is essential for comprehending how cantilevers function and transfer loads effectively.
Load Distribution: Cantilever beams are subjected to various types of loads, including gravitational forces, live loads (such as people or furnishings), and environmental factors like wind or seismic activity. These loads must be distributed efficiently to prevent structural failure. We’ll explore how cantilever beams manage these forces and ensure the safety of the structure they support.
This section will lay the groundwork for our exploration of cantilever beams, setting the stage for a deeper dive into their applications, mechanics, and real-world examples.
Cantilever Beams in Building Construction.
Cantilever beams are not just fascinating structural elements; they are also vital components in modern building construction. In this section, we will explore the various ways in which cantilever beams are employed in contemporary building projects and their significant contributions to the field of civil engineering. We will also delve into a notable example of cantilever beams in the construction of the Forth Bridge, a testament to engineering excellence.
How Cantilever Beams Are Used in Modern Building Projects
Cantilever beams have emerged as a cornerstone of modern architectural innovation, allowing designers to blend structural support with artistic expression seamlessly. Their unique ability to provide support and stability without obstructing open spaces has revolutionized the way architects approach building design. Let’s delve deeper into how cantilever beams have become indispensable in contemporary architecture and explore the practical applications that underpin their aesthetic and functional significance.
1. Liberating Design Possibilities:
- Cantilever beams empower architects with a newfound freedom to think beyond conventional design boundaries. By offering structural support without the need for columns or pillars, they create expansive, unobstructed spaces that inspire creativity.
- The absence of intrusive supporting elements allows for a sense of openness, fluidity, and visual continuity within a structure. This liberation from spatial constraints has led to the creation of awe-inspiring designs that captivate the eye.
2. Aesthetic Marvels:
- The visual impact of cantilevered structures is undeniable. They introduce an element of surprise and intrigue into architectural compositions, breaking away from the monotony of rectilinear forms.
- Cantilevered elements often become the focal points of a building’s design, drawing attention and imbuing the structure with a sense of drama. They transform otherwise ordinary spaces into visually stimulating works of art.
3. Functionality and Space Optimization:
- Beyond their aesthetic appeal, cantilever beams serve a practical purpose. They allow for the creation of functional spaces that maximize the utility of a structure.
- Cantilevered balconies, for instance, extend living spaces outdoors, providing residents with breathtaking views and an enhanced quality of life. Similarly, cantilevered sections in commercial buildings can serve as shaded walkways or outdoor seating areas, optimizing the use of space.
4. Environmental Integration:
- Cantilever beams enable architects to seamlessly integrate buildings with their natural surroundings. By extending living spaces or viewing platforms into scenic landscapes, they create a harmonious relationship between the built environment and nature.
- This integration often results in environmentally conscious designs that minimize the impact on ecosystems while maximizing occupants’ connection to nature.
5. Engineering Marvels:
- The design and construction of cantilevered structures require precision engineering. Architects collaborate closely with structural engineers to ensure that these elements can withstand the forces of gravity, wind, and seismic activity.
- The successful execution of cantilevered designs represents a fusion of art and science, where innovative vision meets rigorous engineering analysis.
In summary, cantilever beams have reshaped modern architecture by allowing architects and engineers to push the boundaries of design. They provide support, stability, and aesthetic intrigue without imposing spatial limitations. The practical applications of cantilever beams in building design underscore their pivotal role in creating structures that captivate, inspire, and challenge conventional construction norms. As we explore the world of cantilever beams further, we’ll encounter iconic examples and delve into the mechanics that make their use possible.
The Significance of Cantilever Beams in Civil Engineering
Civil engineering, as a discipline, leans heavily on cantilever beams for several critical reasons. These beams are indispensable in achieving structural stability, efficiency, and safety in various civil engineering projects. In this section, we will delve into the profound significance of cantilever beams in civil engineering, highlighting their vital role in ensuring the integrity and safety of buildings and infrastructure.
1. Load Distribution and Support:
- Cantilever beams excel in efficiently distributing loads. Civil engineering projects often involve substantial structural elements, and cantilever beams play a pivotal role in supporting these loads.
- Whether it’s a bridge span, a building extension, or a transportation structure, cantilever beams serve as the backbone that holds these elements together. They distribute the weight and forces effectively, preventing structural deformities and ensuring stability.
2. Overcoming Span Challenges:
- In civil engineering, there are frequent instances where long spans must be crossed without the need for supporting columns or pillars. This is where cantilever beams shine.
- By extending horizontally from a fixed support point, cantilever beams can span significant distances, allowing for the construction of expansive bridges and other structures. This feature is particularly advantageous when spanning over water bodies or valleys.
3. Bridge Building Excellence:
- Cantilever beams have played a vital role in the construction of some of the world’s most iconic bridges. Their use in bridge building is a testament to their reliability and strength.
- Bridges like the Forth Bridge in Scotland and the Millau Viaduct in France prominently feature cantilever beams, showcasing their ability to support massive road decks over challenging terrains.
4. Ensuring Safety and Longevity:
- One of the paramount concerns in civil engineering is the safety and durability of structures. Cantilever beams contribute significantly to both aspects.
- Engineers carefully calculate and design cantilevered elements to ensure they can withstand a wide range of forces, including gravity, wind, and seismic activity. This meticulous engineering ensures the safety of the structure and its occupants.
5. Innovation in Infrastructure:
- Cantilever beams enable engineers to push the boundaries of infrastructure design. Their use in unconventional projects leads to innovative solutions that address complex engineering challenges.
- These innovations not only result in functional and safe structures but also often become iconic landmarks that define cities and regions.
In summary, cantilever beams are the unsung heroes of civil engineering. Their ability to efficiently distribute loads, overcome span challenges, and ensure safety makes them indispensable in the construction of robust and enduring structures. Whether supporting bridges, buildings, or transportation infrastructure, cantilever beams are a cornerstone of modern civil engineering, contributing to the creation of safe, efficient, and visually striking infrastructure projects that stand the test of time.
Cantilever Beams in Bridge Building: The Forth Bridge Example
The Forth Bridge in Scotland stands as a monumental testament to the exceptional capabilities of cantilever beams in the realm of bridge construction. This iconic structure, celebrated worldwide for its engineering innovation and historical significance, serves as a striking example of how cantilever beams have been harnessed to create an enduring marvel of engineering. Let’s embark on a journey to uncover the history and significance of the Forth Bridge while highlighting the pivotal role played by cantilever beams in its construction.
Historical Significance:
- The Forth Bridge, spanning the Firth of Forth in Scotland, was completed in 1890. At the time, it was a groundbreaking engineering achievement and remains a symbol of industrial revolution-era engineering prowess.
- The bridge’s construction was driven by the need for a reliable transportation link between Edinburgh and the north of Scotland. It marked a significant improvement over the ferry services that were previously the primary means of crossing the Firth.
Cantilever Beams in the Forth Bridge:
- The Forth Bridge’s design is a masterpiece of cantilever engineering. Its distinctive three-tower structure features two immense cantilever arms extending from the central tower in both directions.
- The cantilever beams of the Forth Bridge provide critical support for the entire structure. They bear the weight of the bridge’s extensive road and rail deck, which spans a total length of 8,094 feet (2,467 meters).
- The cantilever design allowed for the creation of a sturdy and stable bridge that could withstand the challenging environmental conditions of the Firth of Forth, including strong winds and tidal forces.
Engineering Marvel:
- The Forth Bridge’s cantilever design was a groundbreaking innovation in bridge construction. It allowed for the creation of a long-span bridge without the need for central piers that could obstruct navigation in the busy waterway below.
- The bridge’s adaptability and resilience have been demonstrated over more than a century of service. It has endured countless challenges, including severe weather and heavy traffic, while maintaining its structural integrity.
Legacy and Inspiration:
- The Forth Bridge remains a source of inspiration for engineers and architects worldwide. Its use of cantilever beams has influenced subsequent bridge designs and demonstrated the adaptability and strength of this structural element.
- The bridge’s historical and cultural significance was recognized in 2015 when it was designated as a UNESCO World Heritage Site, solidifying its place in engineering history.
In summary, the Forth Bridge in Scotland serves as a living testament to the remarkable capabilities of cantilever beams in bridge construction. Its iconic design, engineering innovation, and enduring legacy underscore the pivotal role of cantilever beams in creating monumental engineering marvels. This example showcases the adaptability and strength of cantilever beams in bridge building and stands as a testament to their essential contribution to the construction industry, where they continue to play a vital role in shaping the world’s infrastructure.
The Mechanics of Cantilever Beams
Cantilever beams are not just visually captivating; they are also fascinating from a structural mechanics perspective. In this section, we will explore the intricate mechanics governing cantilever beams, focusing on shear forces, bending moments, and how these structures efficiently transfer structural loads.
Understanding Shear and Bending Moment in Cantilever Beams
Shear Forces:
Shear forces are one of the key mechanical aspects governing the behavior of cantilever beams. These forces act laterally, perpendicular to the longitudinal axis of the beam. In cantilever beams, understanding shear forces is essential as they play a critical role in maintaining structural stability and preventing the beam from twisting or collapsing.
- Origins of Shear Forces:
- Shear forces typically arise due to applied loads that are not aligned with the longitudinal axis of the beam. For instance, when a load is applied horizontally or at an angle to the beam, it generates shear forces.
- In cantilever beams, shear forces are especially relevant at the free end of the beam, where they have a significant impact on the beam’s behavior.
- Calculating and Managing Shear Forces:
- Engineers use mathematical equations and principles of statics to calculate shear forces at various points along a cantilever beam.
- Managing shear forces is crucial to prevent structural failure. Engineers ensure that the material properties and cross-sectional geometry of the beam can withstand these lateral forces without exceeding safe limits.
- Stabilizing Effect:
- Shear forces are essential for stabilizing cantilever beams. They counteract the tendency of the beam to twist or rotate under the influence of applied loads.
- Properly managed shear forces help maintain the beam’s overall equilibrium, ensuring that it remains rigid and stable in the face of external forces.
Bending Moments:
Bending moments are another fundamental mechanical aspect of cantilever beams. These moments induce bending or curving in the beam and are essential to understanding the behavior of the structure.
- Formation of Bending Moments:
- Bending moments typically arise due to the application of external loads that create a moment, or torque, on the beam. This torque induces bending deformation.
- In cantilever beams, bending moments are particularly significant because they determine the curvature and deflection of the beam under load.
- Analyzing and Designing for Bending Moments:
- Engineers use mathematical equations and principles of mechanics to analyze bending moments in cantilever beams.
- The design of cantilever beams involves selecting appropriate materials and cross-sectional shapes to withstand bending moments without exceeding the beam’s structural capacity.
- Structural Behavior:
- Understanding bending moments is critical for predicting how a cantilever beam will respond to applied loads. Engineers assess factors such as deflection, stress distribution, and structural integrity based on the magnitude and distribution of bending moments.
In summary, shear forces and bending moments are fundamental mechanical aspects that govern the behavior of cantilever beams. Shear forces help maintain stability and counteract twisting, while bending moments induce curving or bending in the beam. Engineers carefully analyze and design cantilever beams to manage these forces, ensuring that the structures remain stable, safe, and capable of withstanding the demands of real-world applications.
How Cantilever Beams Transfer Structural Load.
Load Distribution:
Load distribution is a fundamental concept that underscores the significance of cantilever beams in construction. These beams are integral to the efficient transfer of structural loads, ensuring the safety and stability of buildings, bridges, and other infrastructure. In this section, we will delve into the principles of load distribution in cantilever beams, elucidating how they safely carry and distribute forces from various sources, including live loads, dead loads, and environmental factors.
- Types of Loads:
- Structural loads encompass various forces that act on a building or structure. These loads can be categorized into two main types: dead loads and live loads. Dead loads are the permanent, static forces exerted by the structure itself, including the weight of materials, walls, and fixtures. Live loads, on the other hand, are dynamic forces caused by occupants, furnishings, and environmental factors such as wind and snow.
- Role of Cantilever Beams:
- Cantilever beams serve as essential load-bearing elements in construction. They are strategically positioned to carry the loads applied to a structure efficiently.
- In cantilevered sections of a building, these beams take on the responsibility of safely transferring loads from the free end to the anchored or supported end.
- Load Distribution Mechanisms:
- The effectiveness of cantilever beams in load distribution lies in their ability to distribute forces through the beam’s cross-sectional shape and material properties.
- Engineers carefully design cantilever beams, taking into account factors such as beam depth, width, and material strength to ensure that loads are distributed evenly and that stress levels remain within acceptable limits.
- Balancing Act:
- In cantilever beams, the challenge is to maintain equilibrium despite the applied loads. Shear forces, bending moments, and other internal forces must be carefully managed to prevent structural failure.
- Engineers calculate the distribution of these internal forces to ensure that the beam remains stable and capable of supporting the loads without excessive deflection or deformation.
- Design Considerations:
- When designing structures that incorporate cantilever beams, engineers consider factors such as load magnitude, beam geometry, material properties, and safety factors.
- Advanced structural analysis techniques, including finite element analysis (FEA), are often used to simulate and optimize load distribution in complex cantilevered systems.
In summary, understanding load distribution is essential to appreciate the pivotal role of cantilever beams in construction. These beams serve as the backbone of a structure, effectively transferring the forces exerted on the building to ensure its safety and stability. Engineers apply principles of mechanics and careful design to manage load distribution, allowing cantilever beams to perform their vital function in construction projects of all scales and complexities.
Stress Distribution in Cantilever Beams: Tension and Compression
Tensile and Compressive Stress:
Tensile and compressive stresses are critical considerations in the analysis and design of cantilever beams. These two types of stress result from external loads and the unique structural configuration of cantilever beams. Understanding how engineers manage tensile and compressive stress is crucial for ensuring the structural integrity and safety of these beams.
- Tensile Stress:
- Tensile stress occurs when external forces act to elongate or stretch a material. In cantilever beams, tensile stress typically occurs on the underside (bottom) of the beam, farthest from the applied load.
- Engineers analyze and design cantilever beams to ensure that tensile stress remains within safe limits. This involves selecting materials with high tensile strength and optimizing beam dimensions to resist stretching.
- Compressive Stress:
- Compressive stress, on the other hand, arises when external forces act to compress or shorten a material. In cantilever beams, compressive stress typically occurs on the upper side (top) of the beam, closer to the applied load.
- Managing compressive stress is equally critical. Engineers select materials and beam configurations that can withstand compressive forces without buckling or collapsing.
- Balancing Tensile and Compressive Stresses:
- Cantilever beams experience a dynamic interplay between tensile and compressive stresses as they bend under load. At the neutral axis, which is typically at the center of the beam’s cross-section, neither tensile nor compressive stress predominates.
- Engineers strive to balance these stresses to prevent structural failure. They calculate the beam’s moment of inertia and curvature to ensure that both tensile and compressive stresses remain within acceptable limits.
- Material Selection and Design:
- Engineers carefully select materials for cantilever beams based on their tensile and compressive properties. Materials like steel and reinforced concrete are commonly used due to their favorable strength characteristics.
- The cross-sectional shape of the beam is also a design consideration. Engineers may choose shapes like I-beams or rectangular sections to optimize resistance to both tensile and compressive stresses.
- Safety Factors:
- To account for uncertainties and variations in loadings and materials, engineers apply safety factors to their designs. These factors ensure that the beam can safely withstand loads that may exceed the expected values without failure.
In summary, the management of tensile and compressive stresses is central to the design and analysis of cantilever beams. Engineers carefully calculate and control these stresses to prevent structural failure and ensure the safety and stability of cantilevered structures. This comprehensive understanding of the mechanics governing cantilever beams is fundamental to their successful use in construction, highlighting their reliability and stability as essential structural components.
Design and Construction of Cantilever Beams.
Cantilever beams are remarkable structural elements that require careful design and construction to ensure their stability and functionality. In this section, we will explore the principles of cantilever beam design, the use of pre-stressed structural units in cantilever beam construction, and the key considerations that architects and engineers must keep in mind when building cantilevered structures.
Principles of Cantilever Beam Design
The integration of aesthetics and structural integrity is a hallmark of cantilever beam design. These structures have the unique ability to be both visually appealing and structurally sound, and achieving this balance is paramount in their creation. In this section, we will delve into the principles of cantilever beam design, focusing on how designers harmonize form and function.
- Visual Impact and Load-Bearing Capacity:
- Cantilever beams often serve as focal points in architectural design. They can create striking visual effects, including dramatic overhangs and floating elements. However, their aesthetic appeal should never compromise their ability to bear loads safely.
- Designers must carefully consider the load-bearing capacity of the cantilevered structure, ensuring it can support its intended use and the expected loads without deformation or failure.
- Material Selection:
- The choice of materials is a critical factor in achieving the desired balance between form and function. Designers must select materials that not only align with the desired aesthetics but also possess the necessary structural properties.
- Materials like reinforced concrete, steel, or engineered wood are often favored for cantilever beam construction due to their strength and versatility.
- Cross-Sectional Geometry:
- The cross-sectional shape of the cantilever beam plays a pivotal role in its structural performance. Designers can choose from various profiles, such as I-beams, T-beams, or custom shapes, to optimize both form and function.
- The selection of the right cross-sectional geometry allows designers to distribute stresses efficiently, ensuring that the cantilever beam maintains its shape and stability under load.
Stress Analysis and Optimization:
Engineers play a central role in the design process by conducting comprehensive stress analyses. These analyses are crucial for ensuring that cantilever beams can withstand anticipated loads without experiencing deformation or structural failure.
- Shear Forces and Bending Moments:
- Stress analysis involves calculating shear forces and bending moments within the cantilever beam. Engineers consider how these internal forces develop as loads are applied to the structure.
- Understanding shear forces and bending moments allows engineers to identify critical points in the beam where stresses are highest, enabling them to reinforce those areas as needed.
- Optimizing Beam Configurations:
- The principles of stress analysis guide design decisions, leading to optimized cantilever beam configurations. Engineers may adjust dimensions, material properties, or cross-sectional shapes to ensure that the beam can safely bear loads.
- Finite element analysis (FEA) and computer simulations are valuable tools in fine-tuning the design to achieve the desired structural performance.
In summary, the successful design of cantilever beams hinges on the delicate balance between form and function. Achieving both structural integrity and aesthetic appeal requires careful consideration of material selection, cross-sectional geometry, and architectural vision. Stress analysis and optimization are essential steps in the design process, enabling engineers to create cantilevered structures that are not only visually stunning but also capable of withstanding the demands of real-world applications.

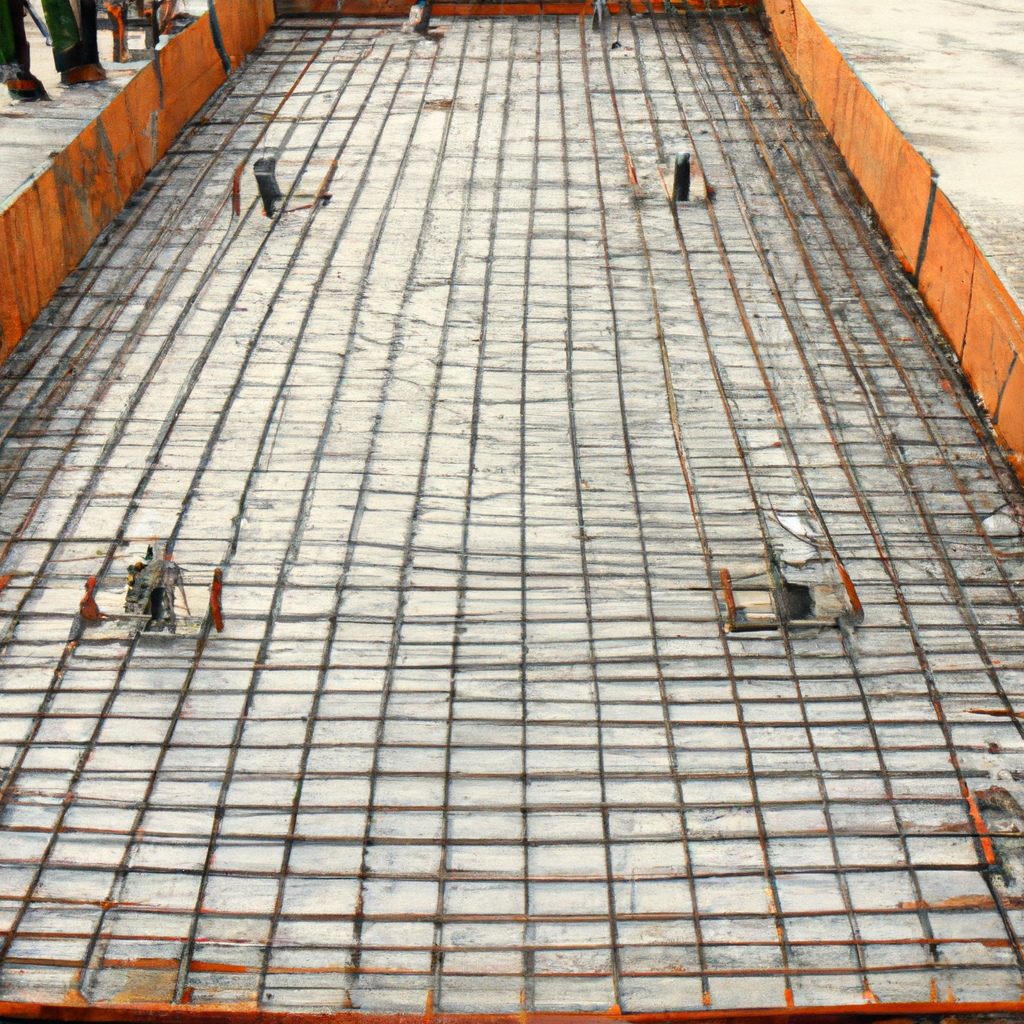

Pre-Stressed Structural Units in Cantilever Beam Construction.
Understanding Pre-Stressed Structural Units:
Pre-stressed structural units, such as pre-stressed concrete or steel elements, are essential components that significantly enhance the performance and durability of cantilever beams. In this section, we will delve into the concept of pre-stressing and elucidate how it contributes to the strength and stability of cantilevered structures.
- Pre-Stressing Defined:
- Pre-stressing is a construction technique that involves applying forces or stresses to structural elements before they are subjected to external loads. These internal stresses counteract the anticipated external forces.
- In cantilever beam construction, pre-stressing is typically achieved through the use of tensioned tendons or cables embedded within the structural elements.
- The Role of Pre-Stressing:
- Pre-stressed structural units are designed to counteract the tensile stresses that cantilever beams experience under load. By introducing internal compression, pre-stressing prevents the formation of tensile cracks in the beam.
- The result is a cantilevered structure that can safely carry heavier loads and exhibit reduced deflection or sagging.
Advantages and Applications:
Understanding the advantages and applications of pre-stressed structural units is crucial for optimizing cantilevered structures and expanding their capabilities.
- Enhanced Load-Bearing Capacity:
- Pre-stressing significantly enhances a cantilever beam’s load-bearing capacity. It allows designers to create longer, more slender cantilevers that can support heavier loads.
- This advantage is particularly valuable in applications like bridges, where the ability to span wide gaps without the need for additional support columns is a critical design consideration.
- Reduced Deflection and Deformation:
- Pre-stressed elements help reduce deflection and deformation in cantilever beams. The compressive stresses introduced through pre-stressing counteract the tendency of the beam to bend under load, resulting in minimal sagging or curvature.
- In architectural applications, this translates to visually appealing, straight-line cantilevers that maintain their form over time.
- Applications Across Industries:
- Engineers use pre-stressed structural units in various cantilever beam applications. This technique finds widespread use in civil engineering for bridges, buildings, and infrastructure.
- Real-world examples showcase the versatility of pre-stressing, from iconic cable-stayed bridges to cantilevered balconies in modern skyscrapers.
- Longevity and Durability:
- Pre-stressing contributes to the longevity and durability of cantilevered structures. By mitigating tensile stresses and preventing cracks, pre-stressed elements extend the lifespan of the structure.
- This durability is especially critical in structures exposed to harsh environmental conditions or heavy traffic loads.
In summary, pre-stressed structural units are integral to the successful design and construction of cantilever beams. Their ability to counteract tensile stresses, enhance load-bearing capacity, and reduce deflection makes them invaluable in various applications. Real-world examples demonstrate the effectiveness of pre-stressing in creating impressive cantilevered designs that not only push the boundaries of engineering but also stand the test of time.
Key Considerations in Building Cantilevered Structures.
Foundation and Anchorage:
The foundation and anchorage of cantilever beams are foundational to their stability and safety. Engineers must meticulously design and construct these critical components to ensure that the supporting structure can withstand the imposed loads. This section explores the considerations for designing secure foundations and anchorages.
- Load Transfer:
- Cantilever beams exert significant forces on their foundations, especially at the anchored end where moments and shear forces are concentrated. Engineers must ensure that the foundation can effectively transfer these loads to the ground.
- Factors such as soil type, bearing capacity, and local geology play a crucial role in determining the appropriate foundation design.
- Anchorage Points:
- The point where the cantilever beam is anchored or supported is equally vital. The anchorage points must be designed to resist both vertical and lateral loads.
- Engineers consider various anchorage methods, such as embedded anchors, bearing plates, or structural connections, to securely fasten the cantilever beam.
Material Selection and Durability:
Cantilevered structures are often exposed to harsh environmental conditions, including moisture, UV radiation, and pollution, which can affect their long-term durability. Material selection is pivotal in ensuring the longevity of these structures.
- Corrosion Resistance:
- In coastal or humid environments, corrosion can be a significant concern. Engineers and architects select materials with high corrosion resistance, such as stainless steel or corrosion-resistant coatings, to protect the structure from degradation.
- Weathering Resistance:
- Exposure to outdoor elements can lead to weathering, which may degrade the appearance and structural integrity of cantilever beams. Durable materials like treated wood, weather-resistant concrete, or coated steel are chosen to withstand weathering effects.
Sustainability and Environmental Impact:
As sustainability and environmental impact increasingly influence construction practices, cantilevered structures must be designed with these considerations in mind.
- Resource-Efficient Design:
- Sustainable design practices seek to minimize resource consumption and environmental impact. Cantilevered structures can be designed to optimize material usage and energy efficiency.
- Engineers and architects explore innovative techniques such as lightweight materials, efficient structural configurations, and renewable energy integration.
- Life Cycle Assessment:
- Assessing the environmental impact over a structure’s entire life cycle is essential. This includes considering factors like construction processes, maintenance requirements, and eventual dismantling or recycling.
- Sustainable cantilevered structures prioritize minimizing their carbon footprint and resource consumption throughout their life cycle.
Aesthetic Integration:
Cantilevered structures often serve as architectural landmarks, and their design should seamlessly integrate both structural and aesthetic objectives.
- Form Follows Function:
- The principle of “form follows function” is particularly relevant in cantilevered architecture. Designers prioritize structural integrity while crafting visually striking cantilevers.
- Creative architectural solutions, innovative materials, and cutting-edge engineering techniques contribute to the seamless integration of aesthetics and functionality.
In conclusion, designing and constructing cantilever beams is a multidisciplinary endeavor that involves considerations of structural mechanics, material science, and architectural vision. By adhering to sound design principles, selecting durable materials, embracing sustainability, and achieving aesthetic integration, architects and engineers can create cantilevered structures that are not only visually stunning but also reliable, stable, and sustainable, contributing to the evolving landscape of modern architecture.
Cantilever Beams in Practice: Real-World Examples
Cantilever beams have left an indelible mark on the world of architecture and engineering, pushing the boundaries of what’s possible in construction. In this section, we will explore real-world examples of cantilevered structures, from iconic buildings that blend form and function to awe-inspiring bridges that defy gravity, and heavy-duty cantilever cranes that demonstrate precision engineering.
Iconic Cantilevered Buildings: From Fallingwater to Modern Skyscrapers
Fallingwater by Frank Lloyd Wright:
- Fallingwater, designed by the legendary architect Frank Lloyd Wright, is a quintessential example of cantilevered architecture. Completed in 1939, this masterpiece features cantilevered balconies that seem to float over a waterfall.
- Wright’s innovative design seamlessly integrates nature and architecture, with cantilevered elements that provide breathtaking views of the surrounding landscape.
Burj Khalifa:
- The Burj Khalifa in Dubai, the world’s tallest skyscraper, incorporates cantilevered sections in its design. These protruding balconies and observation decks offer visitors the experience of being suspended in the sky.
- The Burj Khalifa demonstrates how cantilever beams are used to create architectural marvels that reach unprecedented heights.
Cantilevered Bridges: The Engineering Marvel of Millau Viaduct
Millau Viaduct in France:
- The Millau Viaduct, spanning the Tarn River Valley in France, stands as a testament to engineering excellence. This cable-stayed bridge features multiple cantilevered spans that soar high above the valley floor.
- Engineers used advanced construction techniques and materials to create this structural masterpiece, showcasing the versatility and strength of cantilever beams in bridge building.
Cantilever Cranes: Heavy Lifting with Precision
Port of Long Beach Cranes:
- Cantilever cranes are indispensable in ports worldwide, efficiently handling the loading and unloading of cargo containers from massive container ships. The Port of Long Beach in California, for example, employs a fleet of cantilever cranes that can lift containers with incredible precision.
- These cranes highlight how cantilever beams are used in heavy industry to support substantial loads and maintain stability during cargo handling operations.
In these real-world examples, cantilever beams have been harnessed to create both artistic and functional marvels. From architectural landmarks like Fallingwater to the structural achievement of the Millau Viaduct and the industrial precision of cantilever cranes, these examples showcase the limitless possibilities of cantilever design. They serve as a testament to the creativity of architects and the ingenuity of engineers who continue to explore the art and science of cantilevered structures.
The Science Behind Cantilever Beams.
Cantilever beams may appear as architectural marvels and engineering feats, but their stability and performance rely on precise scientific principles. In this section, we will delve into the science behind cantilever beams, exploring how engineers analyze moment and shear stresses, how cantilevers safely transfer these stresses to supports, and the crucial role of fixed and free ends in cantilever design.
Analyzing Moment and Shear Stresses in Cantilever Beams
Shear Forces:
Shear forces are lateral forces acting perpendicular to the axis of the cantilever beam. These forces are crucial to maintaining stability and preventing the structure from twisting or collapsing. Understanding shear forces is fundamental in ensuring the structural integrity of cantilever beams.
- Origins of Shear Forces:
- Shear forces typically develop when external loads or loads from the structure’s own weight are applied asymmetrically to the cantilever beam.
- The imbalance of forces creates shear stresses along the cross-section of the beam, which can lead to deformations if not properly managed.
- Managing Shear Forces:
- Engineers calculate shear forces to determine the internal stress distribution within the beam. This calculation involves analyzing how shear stresses vary along the length of the cantilever.
- To manage shear forces effectively, engineers may incorporate shear-resistant materials, design cross-sectional shapes that distribute shear stress efficiently, or add shear reinforcement elements like stirrups in reinforced concrete beams.
Bending Moments:
Bending moments are forces that induce bending or curving in the cantilever beam. They play a fundamental role in the behavior of cantilever beams and are essential to understanding their structural response.
- Formation of Bending Moments:
- Bending moments develop when external loads or moments are applied to the cantilevered section of the beam. The combination of these forces creates moments that result in bending.
- The magnitude and direction of bending moments vary along the length of the beam, with the greatest moments typically occurring near the support.
- Analyzing and Designing for Bending Moments:
- Engineers analyze and design cantilever beams to withstand bending moments by selecting appropriate materials, dimensions, and cross-sectional shapes.
- The choice of material properties and cross-sectional geometry can significantly influence how a cantilever beam responds to bending. Reinforced concrete, steel, and other materials are selected based on their ability to resist bending stresses.
- Engineers may also use design principles such as moment-curvature analysis to optimize the beam’s capacity to resist bending while maintaining stability.
In summary, shear forces and bending moments are critical components of the science behind cantilever beams. Engineers must carefully analyze and manage these forces to ensure the structural integrity and stability of cantilevered structures. By understanding the mechanics of shear and bending, engineers can design cantilever beams that not only withstand external loads but also adhere to safety standards, making them reliable components in various architectural and engineering applications.
How Cantilevers Safely Transfer Stresses to Supports
Load Distribution:
Cantilever beams play a pivotal role in effectively distributing structural loads, a fundamental aspect of their functionality. Understanding load distribution is key to comprehending the significance of cantilever beams in construction.
- Principles of Load Distribution:
- Cantilever beams are designed to safely carry and distribute various types of loads. These loads can originate from live loads (such as people or vehicles), dead loads (the weight of the structure itself), and environmental factors (like wind or seismic forces).
- Engineers employ principles of equilibrium and structural analysis to ensure that the loads are distributed efficiently throughout the beam’s length.
- The beam’s cross-sectional shape, material properties, and support conditions all influence how it distributes loads. Engineers tailor these factors to optimize load distribution and minimize stress concentrations.
Tensile and Compressive Stress:
Cantilever beams experience both tensile and compressive stresses due to external loads and their structural configuration. These stresses must be carefully managed to prevent structural failure.
- Mechanics of Tensile and Compressive Stress:
- Tensile stress occurs when forces attempt to elongate or stretch the material within the cantilever beam. Compressive stress, conversely, arises when forces attempt to compress or shorten the material.
- Engineers calculate these stresses by analyzing the internal forces within the beam. Tensile and compressive stresses vary along the length of the cantilever, with maximum values typically occurring near the point of application of the load.
- The beam’s material properties, cross-sectional shape, and support conditions are factors that influence the magnitude and distribution of these stresses.
- Ensuring Structural Integrity:
- Engineers employ various design techniques to ensure that tensile and compressive stresses remain within safe limits. These techniques include selecting materials with appropriate tensile and compressive strength, optimizing cross-sectional shapes, and providing reinforcement where needed.
- Additionally, engineers consider factors such as load duration, temperature fluctuations, and environmental exposure when assessing the long-term performance of cantilever beams.
In conclusion, load distribution and the management of tensile and compressive stress are integral to the safe and reliable operation of cantilever beams in construction. Engineers carefully apply principles of structural analysis and design to ensure that these beams effectively carry and distribute loads while maintaining structural integrity. By understanding and mastering these principles, architects and engineers can create cantilevered structures that are not only visually stunning but also safe and stable in real-world applications.
The Role of Fixed and Free Ends in Cantilever Design
Fixed End Conditions:
Fixed end conditions refer to the scenario where one end of a cantilever beam is rigidly supported. In such cases, the beam is anchored in a way that prevents translation and rotation at the fixed end. Engineers strategically employ fixed end conditions to ensure the stability and structural integrity of cantilever beams.
- Resistance Against Translation and Rotation:
- At the fixed end, the beam is securely attached to a support, whether it’s a wall, column, or another structural element. This connection is designed to resist any lateral movement or translation of the beam.
- Additionally, fixed end conditions prevent any rotation of the cantilever beam, ensuring that it remains in its intended position without angular displacement.
- Importance in Structural Design:
- Fixed end conditions are crucial in structural design, especially when cantilever beams are subjected to significant loads or moments. They help prevent unwanted movement or deformation that could compromise the structural integrity of the beam and the overall stability of the structure.
Free End Conditions:
In contrast, the free end of a cantilever beam is unsupported, which presents unique challenges in design and analysis. Engineers must consider these challenges and understand the stress distributions associated with free ends.
- Unique Challenges:
- The free end of a cantilever beam lacks direct support, making it more susceptible to deflection and deformation under loads. Engineers need to carefully assess the maximum deflection and stresses that the free end can withstand without failure.
- The absence of support at the free end also means that any applied loads or moments will have a more pronounced effect on the beam’s behavior, making it a critical point of consideration in the design.
- Addressing Free End Challenges:
- Engineers use various techniques to address the challenges posed by free end conditions. This may include altering the beam’s cross-sectional shape, adding reinforcements, or even providing additional external supports, such as columns or brackets, near the free end.
- Calculations and simulations are often performed to predict how the cantilever beam will behave under different loading scenarios, allowing engineers to make informed design decisions.
In summary, fixed and free end conditions have a significant impact on the behavior and stability of cantilever beams. Engineers carefully select and design these conditions based on the specific requirements and loads that the cantilevered structure will encounter. Understanding the implications of these conditions is essential for creating reliable and stable cantilevered structures that can withstand the demands of real-world applications in both architecture and engineering.
Cantilever Bridges: A Structural Marvel.
Cantilever bridges stand as remarkable engineering marvels, combining aesthetics and structural prowess. In this section, we will explore the beauty of cantilever spans, delve into the structural challenges and innovations associated with long cantilever bridges, and take a closer look at the iconic Forth Bridge in Scotland, which features three cantilevers with two connecting suspended spans.
The Beauty of Cantilever Spans
Architectural Elegance:
- Cantilever bridges often showcase a captivating architectural elegance. With their extended arms reaching out into the void, they create a visual spectacle that blends seamlessly with their surroundings.
- The aesthetic appeal of cantilever spans lies in their ability to defy gravity while offering uninterrupted views, making them popular choices for scenic and iconic bridge designs.
Suspended Roadways:
- Cantilever bridges frequently incorporate suspended roadways that seem to hang in mid-air. This design not only enhances their visual appeal but also provides practical benefits, such as minimizing the bridge’s footprint and reducing environmental impact.
The Structural Challenges and Innovations of Long Cantilever Bridges.
Spanning Great Distances:
- Long cantilever bridges face the challenge of spanning vast distances without the need for numerous piers or supports. Engineers must design these bridges to endure substantial loads and environmental forces over extended lengths.
- Innovations in materials and construction techniques, such as the use of high-strength steel and reinforced concrete, have enabled the construction of longer and more ambitious cantilever spans.
Managing Tensile and Compressive Stresses:
- Cantilever bridges, especially those with lengthy spans, must contend with significant tensile and compressive stresses. Proper stress analysis and management are crucial for ensuring the structural integrity of these bridges.
- Engineers employ advanced analytical tools and simulations to predict stress distributions and design components that can handle these stresses effectively.
Three Cantilevers with Two Connecting Suspended Spans: The Forth Bridge in Scotland
Engineering Marvel:
- The Forth Bridge in Scotland is a testament to the remarkable capabilities of cantilever bridges. This iconic structure, completed in 1890, features three cantilever spans with two connecting suspended spans, making it a true engineering marvel.
- The Forth Bridge’s distinctive design allows trains to traverse the Firth of Forth with ease, showcasing the adaptability and strength of cantilever bridges.
Historical Significance:
- The Forth Bridge is not only renowned for its engineering innovation but also holds historical significance. It has been designated as a UNESCO World Heritage Site, highlighting its cultural and architectural importance.
- This bridge serves as a symbol of the achievements of civil engineering and the enduring legacy of cantilevered structures in bridge building.
In summary, cantilever bridges represent a harmonious blend of structural engineering and architectural elegance. Their beauty lies in their ability to span great distances while defying conventional bridge design. Long cantilever bridges, in particular, showcase the innovative solutions and materials that enable the construction of such ambitious structures. The Forth Bridge in Scotland stands as a shining example of the remarkable achievements that can be realized through the art and science of cantilevered bridge design, leaving a lasting legacy in the world of civil engineering and architecture.
Cantilever Beams in Building Design
Cantilever beams have a profound impact on modern building design, influencing both aesthetics and functionality. In this section, we will explore how cantilevers shape contemporary building aesthetics, delve into the delicate balance between function and form in cantilevered structures, and examine how cantilevered balconies and extensions maximize space in urban environments.
How Cantilevers Impact Modern Building Aesthetics
Architectural Innovation:
- Cantilever beams have revolutionized architectural innovation by offering architects the freedom to design structures that defy conventional gravity and symmetry. These innovative designs often become iconic landmarks in urban environments.
- The aesthetic appeal of cantilevered elements lies in their ability to create dynamic and visually striking buildings that captivate the eye.
Integration with Surroundings:
- Modern buildings frequently incorporate cantilevered elements that blend harmoniously with their surroundings. Whether extending over natural landscapes or urban streets, cantilevers offer a unique way to connect a building with its environment.
- The strategic use of cantilevered spaces can enhance a building’s relationship with its surroundings, providing residents and occupants with breathtaking views and a sense of connection to the outdoors.
The Art of Balancing Function and Form in Cantilevered Structures
Striking a Balance:
- Cantilevered structures exemplify the art of balancing function and form. Architects and engineers must carefully consider both the aesthetic and structural aspects of a cantilevered design.
- The challenge lies in achieving a visually stunning structure while ensuring that it remains stable, safe, and capable of withstanding external loads.
Material Selection and Cross-Sectional Geometry:
- The choice of materials and cross-sectional geometry plays a pivotal role in achieving the desired balance between function and form. Architects and engineers select materials based on their structural properties and aesthetics.
- Cross-sectional shapes are carefully designed to distribute stresses efficiently, ensuring that the cantilevered elements maintain their structural integrity.
Cantilevered Balconies and Extensions: Maximizing Space in Urban Environments
Urban Space Optimization:
- In densely populated urban areas, space optimization is essential. Cantilevered balconies and extensions offer an ingenious solution by expanding usable space without encroaching on limited ground space.
- These additions create valuable outdoor spaces for residents, providing opportunities for relaxation, recreation, and enjoying city views.
Engineering Precision:
- Cantilevered balconies and extensions require precise engineering to ensure that they can safely bear the weight of occupants and furnishings. Advanced structural analysis is employed to guarantee their safety.
- Additionally, architects consider the visual impact of these cantilevered elements on the building’s overall design, aiming for a harmonious integration of aesthetics and functionality.
In conclusion, cantilever beams have left an indelible mark on modern building design. They empower architects and engineers to push the boundaries of architectural innovation, creating structures that are not only functional but also visually captivating. Achieving the delicate balance between function and form is the hallmark of cantilevered structures, and when applied to urban environments, cantilevered balconies and extensions provide a pragmatic solution to space constraints while adding an element of sophistication to cityscapes.
The Future of Cantilever Beams in Construction
Cantilever beams, a cornerstone of architectural and engineering innovation, continue to evolve and shape the future of construction. In this section, we will explore the advancements in cantilever design and materials, the adoption of sustainable practices in cantilevered structures, and the exciting possibilities that lie ahead for this remarkable structural element.
Advancements in Cantilever Design and Materials
Innovative Structural Materials:
- The future of cantilever beams is closely tied to the development of new and advanced structural materials. Engineers and material scientists are continually researching and experimenting with materials that offer enhanced strength, durability, and versatility.
- Materials like carbon-fiber-reinforced composites and ultra-high-performance concrete hold promise for creating cantilevered structures that are both lightweight and exceptionally strong.
Advanced Computational Tools:
- The use of advanced computational tools and simulation software is becoming increasingly prevalent in cantilever design. These tools allow engineers to perform intricate stress analysis and optimization, leading to more efficient and innovative designs.
- Computational methods also facilitate the exploration of unconventional cantilever shapes and configurations, pushing the boundaries of what’s possible.
Sustainable Practices in Cantilevered Structures
Environmental Considerations:
- As sustainability takes center stage in construction, cantilevered structures are no exception. The future of cantilever beams will involve a deep commitment to environmentally conscious practices.
- Architects and engineers will prioritize the use of eco-friendly materials, energy-efficient designs, and sustainable construction processes in the development of cantilevered buildings and bridges.
Integration of Green Technologies:
- Cantilevered structures will increasingly incorporate green technologies such as solar panels, rainwater harvesting systems, and vertical gardens. These additions not only reduce the environmental impact but also contribute positively to the urban landscape.
- The future may see cantilever beams as platforms for renewable energy generation, further aligning them with sustainable objectives.
Pushing the Boundaries: What Lies Ahead for Cantilever Beams
Architectural Experimentation:
- The future holds exciting possibilities for architects and engineers to experiment with cantilevered designs that defy conventional norms. We can expect to see more daring and iconic cantilevered structures that challenge our perception of what is achievable.
- These architectural experiments may explore extreme cantilever lengths, complex geometries, and unconventional applications.
Integration of Technology:
- Cantilever beams will be closely integrated with cutting-edge technology. Smart materials, real-time structural monitoring systems, and digital twin simulations will play crucial roles in ensuring the safety and longevity of cantilevered structures.
- Technology-driven innovations will enable real-time adjustments to cantilevered elements, enhancing their adaptability to changing environmental conditions.
In conclusion, the future of cantilever beams in construction promises to be a dynamic and transformative journey. Advancements in design and materials, coupled with a strong commitment to sustainability, will shape cantilevered structures that are not only functional and aesthetically pleasing but also environmentally responsible. As architects and engineers continue to push the boundaries of what is achievable, the possibilities for cantilever beams in the construction industry are boundless, heralding an era of architectural innovation and sustainable progress.
Conclusion
Cantilever beams have established themselves as iconic and influential components in the domains of architecture and construction. Their legacy is marked by their extraordinary ability to seamlessly blend aesthetic appeal with unwavering structural integrity. This unique fusion has not only enabled the creation of visually striking designs but has also propelled the construction industry towards unprecedented achievements in engineering and architecture.
In the annals of architectural history, cantilever beams have played a pivotal role in shaping the skyline of cities worldwide. Their introduction into the field allowed architects to dream beyond the limitations of traditional structural elements. By projecting horizontally from one end while being securely anchored or supported at the other, cantilever beams opened up a realm of possibilities. They enabled architects to envision and execute breathtaking designs that seemed to defy gravity itself. This newfound freedom gave rise to some of the most iconic and groundbreaking architectural masterpieces of our time.
As we gaze into the future, cantilever beams show no signs of stagnation. On the contrary, they are poised for an era of continuous evolution and innovation. Advanced materials with exceptional strength-to-weight ratios and durability are being harnessed, paving the way for even more daring and awe-inspiring cantilevered structures. Sustainability has become a central concern in construction, and cantilever beams are aligning with this ethos by adopting eco-friendly practices and materials.
Cutting-edge technology, including artificial intelligence, computational modeling, and real-time structural monitoring, is becoming an integral part of cantilever beam design and construction. This integration promises safer, more adaptable, and longer-lasting structures that can withstand the test of time and environmental challenges.
The future of cantilever beams is an exciting one, where boundaries are pushed, and innovation knows no bounds. Architects and engineers are set to explore uncharted territories in design, pushing the limits of cantilevered architecture to new heights. These developments hold the promise of architectural marvels that will not only inspire but also contribute positively to the world we inhabit.
In closing, we trust that this comprehensive guide has shed light on the captivating realm of cantilever beams. We hope it has not only educated but also inspired architects, engineers, and enthusiasts to embark on their own journeys of exploration in the realms of design and construction. As cantilever beams continue to captivate our imaginations and redefine the possibilities in architecture and engineering, we eagerly anticipate the remarkable structures that the future holds.
FAQs
Q1: What is a cantilever?
A cantilever is a structural element that extends horizontally from one end while being anchored or supported at the other, allowing for overhangs and extensions in buildings and bridges.
Q2: How do cantilever beams work?
Cantilever beams are beams that are anchored at one end and project horizontally. They support loads at the free end and distribute forces back to the anchor point.
Q3: What is the role of a cantilever beam in building construction?
Cantilever beams provide stability, strength, and architectural flexibility in building projects. They allow for unique designs and open spaces without obstructive supports.
Q4: Can you provide examples of cantilevered structures in architecture?
Certainly! Examples include the iconic Fallingwater house, modern skyscrapers with cantilevered sections, and cantilevered balconies in urban environments.
Q5: What are shear and bending moments in cantilever beams?
Shear forces act laterally perpendicular to the beam’s axis, while bending moments induce curving or bending in the beam. Both are critical mechanical aspects of cantilever beams.
Q6: How do cantilever beams transfer structural loads?
Cantilever beams distribute loads from various sources, including live and dead loads, safely to the supports. Their unique design enables this load-bearing capability.
Q7: What are tensile and compressive stresses in cantilever beams?
Tensile stress pulls the material apart, while compressive stress pushes it together. Cantilever beams experience both types of stress due to external loads.
Q8: How does pre-stressing contribute to cantilever beam construction?
Pre-stressing, using materials like pre-stressed concrete or steel, enhances the strength and stability of cantilevered structures, allowing for longer spans and greater load-bearing capacity.
Q9: What considerations are important when designing foundations for cantilever beams?
Engineers must ensure that the foundation and anchorage of cantilever beams can withstand the imposed loads and environmental factors, ensuring stability.
Q10: How do cantilever beams impact modern building aesthetics?
Cantilever beams allow architects to create visually striking designs while maintaining structural integrity, enhancing the aesthetic appeal of modern buildings.
Q11: What does the future hold for cantilever beams in construction?
The future of cantilever beams involves incorporating advanced materials, sustainable practices, and cutting-edge technology, promising an era of architectural innovation and structural excellence.
Q12: Can you provide an example of a famous cantilever bridge?
Certainly! The Forth Bridge in Scotland is an iconic cantilever bridge known for its engineering innovation and extensive use of cantilever beams.
Q13: How do cantilever beams safely transfer stresses to supports?
Cantilever beams rely on fixed and free ends. Fixed ends resist translation and rotation, while free ends present unique challenges that engineers address for stability.
Q14: What are the main differences between cantilever beams and traditional beam systems?
Cantilever beams project horizontally from one end, while traditional beams are supported at both ends. Cantilevers offer unique advantages in certain architectural designs.
Q15: Are cantilever beams extensively used in building construction?
Yes, cantilever beams are widely employed in building construction, offering both structural support and design versatility.
Q16: How do architects balance function and form in cantilevered structures?
Architects consider material selection, cross-sectional geometry, and architectural vision to strike a balance between structural integrity and visual appeal.
Q17: What is the significance of shear forces in cantilever beams?
Shear forces are crucial to maintaining stability and preventing twisting or collapsing in cantilever beams. Engineers manage them to ensure structural integrity.
Q18: How do cantilever cranes work, and where are they used?
Cantilever cranes use cantilevered arms to lift heavy loads with precision. They are commonly used in industrial and construction settings.
Q19: Can you provide examples of cantilevered structures in architecture?
Certainly! Examples include the iconic Fallingwater house, modern skyscrapers with cantilevered sections, and cantilevered balconies in urban environments.
Q20: What are the basic concepts of a cantilever beam’s design and construction?
Design principles include material selection, stress analysis, and the integration of pre-stressed structural units, while construction considerations involve secure foundations, material durability, sustainability, and aesthetics.
These FAQs aim to address common questions about cantilever beams, building design, and their role in architecture and construction. For more detailed information, refer to the articles and sections above.
tribeca,cantilever is a rigid,cantilever construction,example of a cantilever,supported at one end,cantilever examples,cantilever girder,one end and free,vertical support,horizontal beam structure whose free,beam structure whose free end,bending moment of a cantilever,moment of a cantilever beam,small cantilevercantilever and safely,design of the structure,small cantilever,cantilever and safely,cantilever beam under the action,supported beammain structure,main structure,free at the other end,supported beam,cantilever is a rigid body,cantilever is subjected,cantilever work,beam supported,upper half of the thickness,subjected to tensile stress,lower half to compressive stress,extensively in building construction,extensively in building construction,upper fiber of the concrete,fiber of the concrete beam,concrete or steel whose one,steel whose one end,tension in the upper fiber,upper fiber and compression,compression in the lower fibers,zero at the free end,depth or using a steel,using a steel or pre-stressed,steel or pre-stressed structural unit,steel or pre-stressed structural unit,given that the structure,construction by pre-stressing methods,construction of bridges,structural actions and basic concepts,action of the structural load,truss process is to transfer,cantilever carries,design process is to transfer,supported at only one end,truss bridge,cantilever must,transfer these stresses safely,stresses safely to the support,supported only at one end,restraints at the fixed end,free end are counteracted,counteracted by the fixed end.
Sameera Building Construction
Your One-Stop Shop for Building Dreams (Literally!)
We've got bricks, we've got beams, and we've got a bunch of hard hats.
Because when it comes to construction, we don't just build buildings; we build stories.
Visit Us Now and Join the Fun!Source link
